Views: 0 Author: Site Editor Publish Time: 2026-03-04 Origin: Site
Stricter discharge standards and water reuse targets are forcing municipalities and industrial facilities to rethink traditional biological treatment processes. Conventional activated sludge systems often struggle with fluctuating effluent quality and large footprint requirements, especially when land availability is limited or reuse is required. MBR Membrane wastewater treatment addresses this challenge by replacing gravity settling with membrane separation, creating a physical barrier that stabilizes effluent quality. By combining biological treatment with membrane filtration, MBR technology enables consistent solid-liquid separation, compact plant design, and reliable water reuse performance across a wide range of municipal and industrial applications.
An MBR membrane system integrates a biological reactor with a microfiltration or ultrafiltration membrane. Instead of relying on sedimentation tanks to separate biomass from treated water, the membrane physically retains suspended solids while allowing clean water to pass through. This creates a more controlled separation environment and enables higher biomass concentration inside the reactor.
Higher biomass concentration improves treatment efficiency and allows plants to operate with smaller reactor volumes. This is one of the reasons MBR systems are widely adopted in space-constrained projects and plant upgrades.
The membrane acts as a barrier that prevents suspended solids, bacteria, and many pathogens from leaving the system. This barrier significantly improves effluent clarity and consistency. Unlike traditional settling processes that depend on floc formation and gravity, membrane separation is less sensitive to variations in sludge characteristics.
Stable separation also supports downstream reuse applications because treated water quality remains predictable even under variable operating conditions.
MBR treatment begins with pretreatment steps such as screening and grit removal to protect downstream equipment. After pretreatment, wastewater enters the biological reactor where microorganisms break down organic contaminants.
Because membranes retain biomass within the system, sludge concentration can be maintained at higher levels than in conventional systems. This improves biological degradation efficiency and supports compact design.
Following biological treatment, the membrane separates treated water from mixed liquor. Clean permeate passes through the membrane while solids remain in the reactor. The treated water can then be disinfected or directly reused depending on project requirements.
Fouling can occur at the membrane surface due to particle accumulation and biological activity. Operational strategies such as aeration and periodic cleaning help maintain performance and restore flux over time.
MBR technology consistently produces low turbidity effluent suitable for reuse applications such as irrigation, industrial cooling, and process water. The membrane barrier ensures that solids removal remains stable even when influent conditions fluctuate.
This reliability supports compliance with increasingly strict discharge regulations and reduces the need for additional polishing steps.
MBR systems require less space than conventional treatment because membrane separation eliminates large settling tanks. Compact design is particularly valuable in urban projects, industrial retrofits, and facilities with land constraints.
Automation is also easier to implement because membrane performance can be monitored using measurable parameters such as flux and pressure.
Higher mixed liquor concentration allows more stable biological treatment. Operators can maintain consistent removal performance despite variations in influent loading. This stability reduces operational risk and supports predictable plant performance.
MBR technology therefore improves both treatment efficiency and operational control.
Membrane aeration and cleaning contribute to operating costs. Aeration helps control fouling while chemical cleaning restores performance over time. Although these factors increase energy use compared with conventional systems, they are often offset by reduced footprint, improved effluent quality, and reuse capability.
Understanding these trade-offs allows project teams to evaluate total lifecycle cost rather than focusing solely on energy consumption.
Membrane material plays a critical role in fouling resistance and long-term performance. Surface properties influence how particles attach and how easily they can be removed during cleaning. Hydrophilic surfaces typically reduce fouling tendency and support stable operation.
Material consistency also affects manufacturing reliability, particularly for membrane cassette production. Stable membrane properties enable predictable assembly quality and long-term performance.

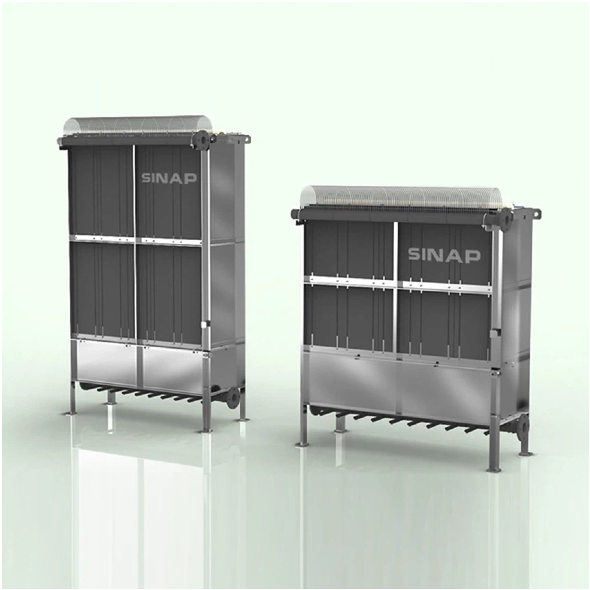

Flat sheet MBR membranes are often chosen for their accessibility and structural stability. The geometry allows easier inspection, cleaning, and maintenance. Mechanical strength also supports consistent performance under varying operating conditions.
Flat sheet configurations are widely used in municipal and industrial treatment where maintenance simplicity and reliability are priorities.
Hollow fiber membranes offer high packing density, allowing more membrane area within a given footprint. This can improve productivity in space-limited installations. However, maintenance access and mechanical sensitivity may require careful operation.
Selecting between flat sheet and hollow fiber depends on maintenance strategy, operating conditions, and project priorities rather than performance alone.
Topic | What it means | Why buyers care | What to ask |
Membrane type | Flat sheet or hollow fiber | Maintenance strategy | Which design fits operation capability |
Pore size range | Micro or ultrafiltration | Effluent stability | Required removal level |
Fouling control | Aeration and cleaning | Operating cost and uptime | Cleaning frequency expectations |
Footprint | Compact system design | Land and retrofit feasibility | Space limitation considerations |
This framework helps project teams translate technology concepts into practical design decisions. It also supports communication between engineering, procurement, and operations stakeholders.
Membrane performance depends heavily on material structure and manufacturing consistency. PVDF membrane materials are widely used due to their chemical resistance, mechanical strength, and long service life. Stable pore structure ensures consistent separation while maintaining permeability.
Material consistency is particularly important for membrane cassette manufacturing. Uniform thickness, predictable welding behavior, and reliable mechanical properties contribute to production efficiency and module performance.
MBR membrane roll materials enable manufacturers to optimize yield and maintain assembly quality. Continuous roll formats reduce material waste and support scalable production, especially in large municipal projects requiring extensive membrane area.
Shanghai SINAP Membrane Tech Co., Ltd. is a high-tech enterprise specializing in flat sheet membrane technology. As an executive director of the Chinese Membrane Industry Association, SINAP provides PVDF membrane materials used in municipal sewage and industrial wastewater treatment across industries such as printing and dyeing, food processing, steel manufacturing, papermaking, and chemical production. SINAP products are exported to more than sixty countries and are recognized for consistent quality, research innovation, and reliable performance.
MBR technology is not simply a more expensive filtration approach but a more controlled method of solid-liquid separation that improves effluent stability and enables water reuse. By combining biological treatment with membrane separation, MBR systems deliver predictable performance, compact plant design, and enhanced operational control. Understanding membrane configuration, material properties, and fouling management allows project teams to implement MBR solutions that align with long-term treatment goals. For membrane manufacturers and system integrators, material consistency and manufacturability are critical factors in achieving reliable performance. Organizations exploring advanced wastewater treatment solutions can benefit from stable membrane bioreactor technology supported by high-quality membrane materials.
Contact us
Shanghai SINAP Membrane Tech Co., Ltd. provides engineered PVDF membrane roll materials designed for flat sheet MBR membrane production and wastewater treatment applications worldwide. Our technical team supports membrane module manufacturers and project developers with material selection, production optimization, and performance guidance. Contact SINAP to discuss your MBR membrane requirements, manufacturing conditions, and project objectives.
1 What does MBR membrane mean in wastewater treatment
MBR membrane refers to a filtration membrane integrated with a biological reactor that separates treated water from biomass to produce high-quality effluent.
2 Why is MBR technology used instead of traditional treatment
MBR provides more stable effluent quality, smaller footprint, and improved reuse potential compared with conventional settling processes.
3 Are flat sheet MBR membranes easier to maintain
Flat sheet membranes are often easier to inspect and clean, making them suitable for projects prioritizing maintenance accessibility and reliability.
4 What material is commonly used for MBR membranes
PVDF membrane materials are widely used because they offer strong chemical resistance, mechanical durability, and stable long-term filtration performance.
