SINAP Depth Filtration Cartridges

SINAP Depth Filtration Cartridge is combined by high-purity cellulose pulp and inorganic filter aids through a special process. Its internal three-dimensional structure which is crisscrossed in all directions makes it a deep filtration medium and providing excellent filtration performance and high dirt-holding capacity. By using advanced and highly automated production process, all raw materials are inspected through strict quality control procedures to ensure consistent product quality and performance.

Recommend applications

Beverages, food, vaccines and thermal power plants

Mechanism

Membrane of SINAP Depth Filtration Cartridge is formed by intertwining cellulose

wrapped non-organic filter aid diatomite, through a special process to create a tight three-

dimensional structure. Go thorough from the surface to depth, the pore size  decrease,

forming a gradually tightening structure. During the filtration process, this can reduce the flow rate of solid particles and eventually retain them.

Non-organic filter aid diatomite has a natural porous structure inside, which provides good    particle adsorption effect for the paperboard membrane and increases its permeability. Due  to the three-dimensional structure and porous structure of diatomite, this combined structure has an extremely high dirt-holding capacity.

Applications

Selective decolorization and odor removal for beverage

Remove suspended solids from water used in thermal power plants

Clarification and Filtration fermentation broth and cell culture medium

Filtration of serum and blood products

Filtration of enzyme preparation

Chemical impurity removal and decarbonization

Filtration of colloidal or viscous materials

Material and structure

Working conditions

Chemical compatibility

*G=Tolerance         P=Notrecommended

Biological safety

Extractable - metal ions

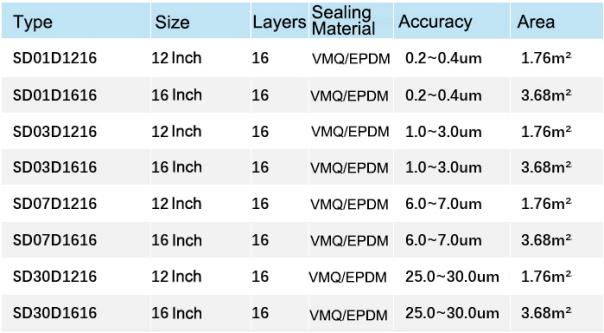

Filtration accuracy and area

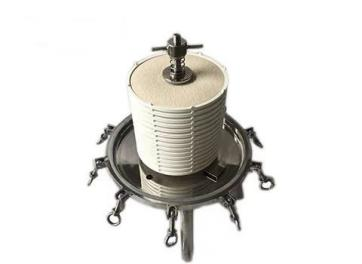

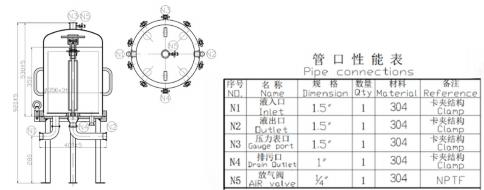

Filter structure and interface
