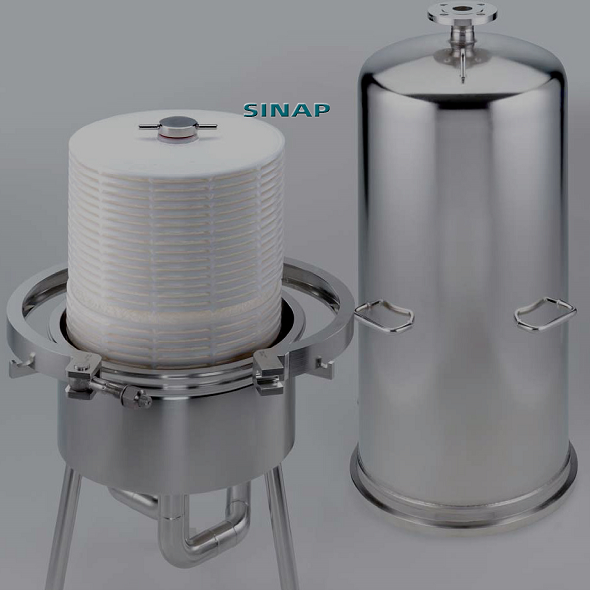

Shanghai SINAP, a global MBR membrane manufacturer, offers the High-Capacity Depth Filtration Cartridges. We are a trusted Depth filtration cartridges supplier dedicated to enhancing fluid quality. This technology is vital for beverage clarification filter cartridges in the food and drink sector. Our commitment is to provide reliable food grade liquid filtration solutions that meet the highest regulatory standards.
SINAP guarantees consistent quality through advanced, highly automated production. All raw materials, including high-purity cellulose and inorganic filter aids, undergo strict quality control procedures. This precision ensures every cartridge delivers stable performance. The material purity makes these filters suitable for industrial wastewater treatment solutions and all sensitive processing areas. The PE frame is engineered with a high negative charge load to enhance particle capture.
Our product line includes eight standard models, varying in size and filtration accuracy. Sizes are available in 12 inch and 16 inch diameters. Filtration accuracy ranges from 0.2 to 30.0 microns. Each unit features VMQ EPDM sealing material for chemical resistance. This extensive range complements our core business in Flat sheet MBR module and Membrane bioreactor technology. We offer specific solutions, from the fine 0.2 micron High-flow depth filter to the coarser 30.0 micron pre-filter.
Cartridges operate reliably up to 80 degrees Celsius. The maximum differential pressure allowed is 0.24 MPa at 80 degrees Celsius. Before use, a mandatory rinse procedure is required. This ensures maximum efficiency from the start. All connection ports, including Inlet, Outlet, and Gauge Port, use standardized 1.5 inch connections with 304 stainless steel clamps, simplifying system integration. The Air valve is a 1/4 inch NPTF connection.

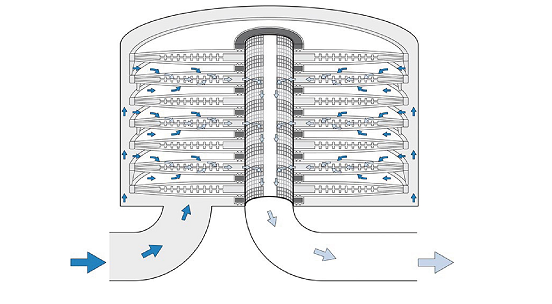

Depth Filtration Cartridges Mechanism
| Item | Description |
|---|---|
| Filter Material | Eillulose, diatomite filter aid and ionic wet-strength resin |
| Outer frame | PE High negative charge load |
| Inside | PE |
| Sealing | Silicone rubber/ethylene propylene diene monomer |
| Item | Specification |
|---|---|
| Max temperature | 80℃ |
| Max DP | 0.24Mpa / 80℃ |
| Rinse before use | Single layer: 50L/m²; dual layer:100L/m²; flowrate:10L/min/m² |
| TYPE | SIZE | Layers | Sealing Material | Accuracy | Area |
|---|---|---|---|---|---|
| SD01D1216 | 12 inch | 16 | VMQ/EPDM | 0.2~0.4um | 1.76m² |
| SD01D1616 | 16 inch | 16 | VMQ/EPDM | 0.2~0.4um | 3.68m² |
| SD303D1216 | 12 inch | 16 | VMQ/EPDM | 1.0~3.0um | 1.76m² |
| SD303D1616 | 16 inch | 16 | VMQ/EPDM | 1.0~3.0um | 3.68m² |
| SD07D1216 | 12 inch | 16 | VMQ/EPDM | 6.0~7.0um | 1.76m² |
| SD07D1616 | 16 inch | 16 | VMQ/EPDM | 6.0~7.0um | 3.68m² |
| SD30D1216 | 12 inch | 16 | VMQ/EPDM | 25.0~30.0um | 1.76m² |
| SD30D1616 | 16 inch | 16 | VMQ/EPDM | 25.0~30.0um | 3.68m² |
| No. | Name | Dimension | Qty | Material | Remarks |
|---|---|---|---|---|---|
| 1 | Inlet | 1.5" | 1 | 304 | Clamp |
| 2 | Outlet | 1.5" | 1 | 304 | Clamp |
| 3 | Gauge Port | 1.5" | 1 | 304 | Clamp |
| 4 | Drain Outlet | 1.0" | 1 | 304 | Clamp |
| 5 | Air valve | 1/4" | 1 | 304 | NPTF |
Our High-Capacity Depth Filtration Cartridges deliver precise separation and high throughput, making them essential components for critical liquid processing.
Progressive Structure: The filter media is designed with pores that gradually decrease in size from the inlet side to the outlet side.
Sequential Particle Capture: This graded structure ensures that larger particles are trapped near the surface, while progressively smaller particles are caught deeper within the matrix.
Maximized Longevity: This layered interception strategy evenly distributes the load of suspended solids, which substantially increases the effective dirt-holding capacity of the cartridge.
Stable Flow: By delaying premature surface blinding, the filter maintains a stable differential pressure for longer periods, reducing the frequency of filter changes.
Colloid and Suspended Solid Removal: The precise composition of cellulose and diatomite filter aid effectively removes haze-causing colloids and fine suspended matter.
Color and Odor Control: The filter media exhibits a capacity for selective adsorption, which aids in the choice removal of unwanted color components and off-flavors from liquids.
Product Protection: This capability ensures the finished product, such as beverages, juices, or pharmaceuticals, retains its intended clarity, taste, and color without compromise.
High-Temperature Operation: The component materials, including the PE frame and VMQ/EPDM seals, allow the cartridge to operate reliably up to 80 degrees Celsius.
Pressure Resistance: The robust design is rated to withstand a maximum differential pressure of 0.24 MPa at the maximum operating temperature.
Sanitization Compatibility: This stability ensures the filter elements remain structurally sound and sealed during the high-temperature sterilization and cleaning cycles common in regulated industries.
Culture Media: Effective for the clarification and pre-filtration of fermentation broths and cell culture media.
Plasma Products: Used for the filtration of sensitive biological fluids, including serum and various blood products.
Enzyme Solutions: Suitable for the filtration and purification of enzyme preparations.
Beverage Processing: Applied for the selective decolorization and removal of unwanted odor compounds.
Viscous Fluids: Ideal for purifying liquids with high viscosity or high colloidal content, where high dirt capacity is critical.
Chemical Refining: Used for the removal of chemical impurities and decarbonization in various process streams.
Power Generation: Used to remove suspended solids from water supplies utilized in thermal power plants, protecting downstream equipment.
